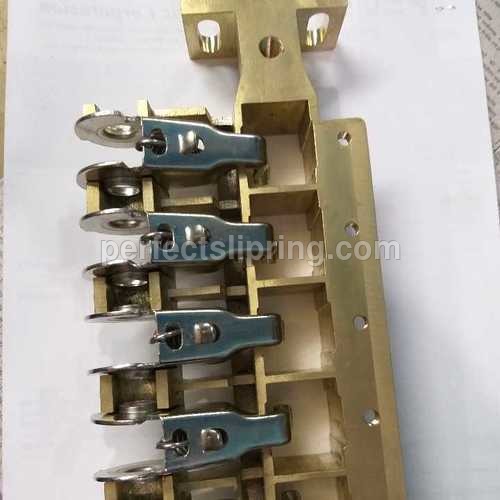

Carbon Brush Holder

Carbon Brush Holder
Carbon Brush Holder
Product Code : 36
Product Description

We are engrossed in manufacturing, exporting and supplying a superior quality gamut of Carbon Brush Holder. Using pristine grade raw materials with the aid of modern techniques, the offered holder is manufactured under the ingenious professionals' supervision at our advanced premises. Widely utilized to maintain the position of carbon brushes in various mechanical components, this holder is demanded in power stations, manufacturing plants and other similar sectors. Also, the provided Carbon Brush Holder is available for our esteemed clients at cost-effective prices.

Features:

  • Accurate dimensions
  • High durability
  • Sturdy construction
  • Seamless finish

Carbon Brush Holder

We are offering Carbon Brush Holder, Brush Holder, Electric Motor Brush Holders to our valued client and all over products are manufactured using best grade of raw materials to ensure best quality product at reasonable prices.

Our carbon brush holder satisfies a vital work in the production of a decent system. This is the reason it is imperative to contribute time when settling on spring system, placement as well as spring pressure of the holders. The expectation is to accomplish the most ideal consolidation as far as voltage drop and grating are concerned as they influence the strength of the system, essentially through thermal loss.

Normally there are three sorts of spring systems.
Press finger: These are normally discovered where brushes of the greatest extent does not surpass 65 mm. Utilizes pressure springs.
Roll spring: Most typical in relationship with lengthy brushes
Pressure spring: Frequently utilized for littler brushes as well as is a piece of the brush outline.

Selection Of Spring System
This is principally identified with the measurement of brushes. In addition, it is fundamental to know that the spring force fluctuates relying upon the springs' qualities as well as development by over ±10%.

Also, it is essential that the brush's regular weight is thought about. At the point when many brushes are put on a similar stage it is vital that they possess a similar edge to the connection surfaces. This to prevent various weights as well as any resultant irregularity in the voltage spacing between the brushes.

Spring pressure
There are a wide range of hypotheses about the most ideal force. What is imperative is to guarantee that the force is adequate for the current capacity as well as that due thought is provided to vibrations, rubbing and current drop.

Ordinarily happening force shifts from around 175-250cN. Further, for trains locomotives and in addition, different uses where there are oscillations with high amplitude, fundamentally higher force can be utilized.

Brush angle to the connection surface
In the event that the course of rotation is dependably the same, the point of angle ought to be no less than 90°. Neither is it an inconvenience, in these instances, that holders are situated along side the tracking edge if every holder can be positioned likewise as the pressure from the rubbing balances the spring weight negligibly.

The Varied Attributes Of Brush Holders Comprise:

  • Extremely reduced
  • Effortlessness of outline
  • Broadened Brush Life
  • Manufactured by most recent advancement
  • Removal of weight alteration
  • Simplicity of evacuating brush for service and substitution
